Tail Post Drawings

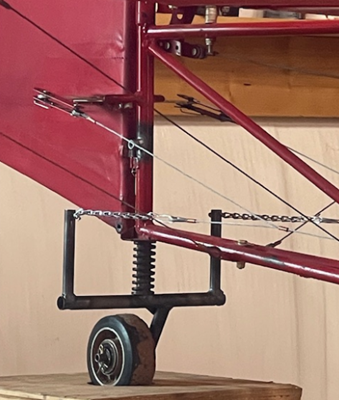

Drawings for tail post tail wheel system. NOTE! If ordering this by itself, please select pickup and we will mail directly and avoid extra charges!!
This is an idea we first viewed during Oshkosh 2018 on Denny Sleen’s Legal Eagle UL. I was impressed with its simplicity and weight savings. When I built Legal Eagle XL SR7-1/2 this was installed and the outcome was good even though we had to rebuild it with heavier materials, the .028 tubes did not hold up. Earlier this year we modified Legal Eagle XL ORV, an existing machine, and converted to this system. It has worked very well, and we had weight savings as well as time savings when we take ORV apart to load in trailer. These plans include drawings and parts list of all parts we used for installation. Drawings are 8-1/2” x 11” Cost of Drawings is $ 20.00 plus tax and shipping.
Description
This is an idea we first viewed during Oshkosh 2018 on Denny Sleen’s Legal Eagle UL. I was impressed with its simplicity and weight savings. When I built Legal Eagle XL SR7-1/2 this was installed and the outcome was good even though we had to rebuild it with heavier materials, the .028 tubes did not hold up. Earlier this year we modified Legal Eagle XL ORV, an existing machine, and converted to this system. It has worked very well, and we had weight savings as well as time savings when we take ORV apart to load in trailer. These plans include drawings and parts list of all parts we used for installation. Drawings are 8-1/2” x 11” Cost of Drawings is $ 20.00 plus tax and shipping.
