Gear- Wing Original Fittings
Gear- Wing Original Fittings

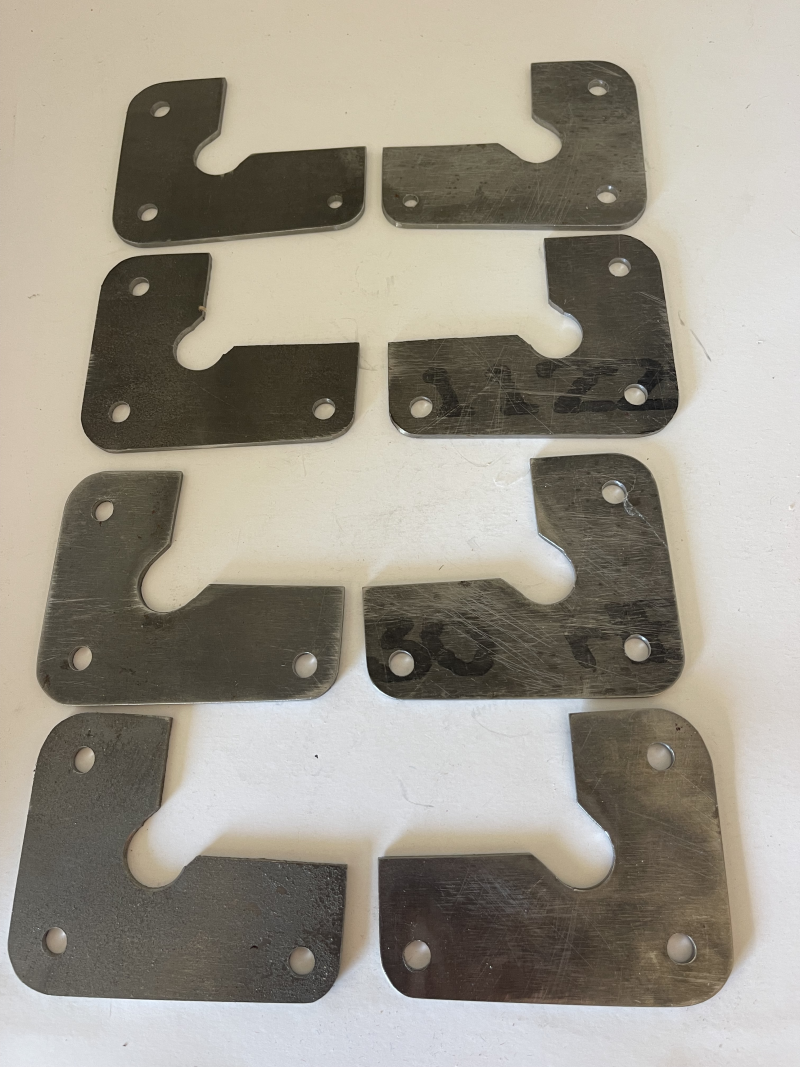

These are called out on plans for Legal Eagle XL and UL for mounting of wing struts lower end, landing gear hinge point and landing gear cross link connection point. There are 8 parts total and will require additional fitment as result of weld size at joint and diagonal braces on two of the connections plus the vertical tubes are not true vertical. These are made of .090 x 4130 steel.
Description
These are called out on plans for Legal Eagle XL and UL for mounting of wing struts lower end, landing gear hinge point and landing gear cross link connection point. There are 8 parts total and will require additional fitment as result of weld size at joint and diagonal braces on two of the connections plus the vertical tubes are not true vertical. These are made of .090 x 4130 steel.
